Cortizo COR 80 Industrial Windows with Thermal Break

A new concept of Euro-Groove hinged system capable of reaching the maximum levels of weather tightness, energy saving and acoustic protection for your commercial building.

Industrial Windows Engineered to Last

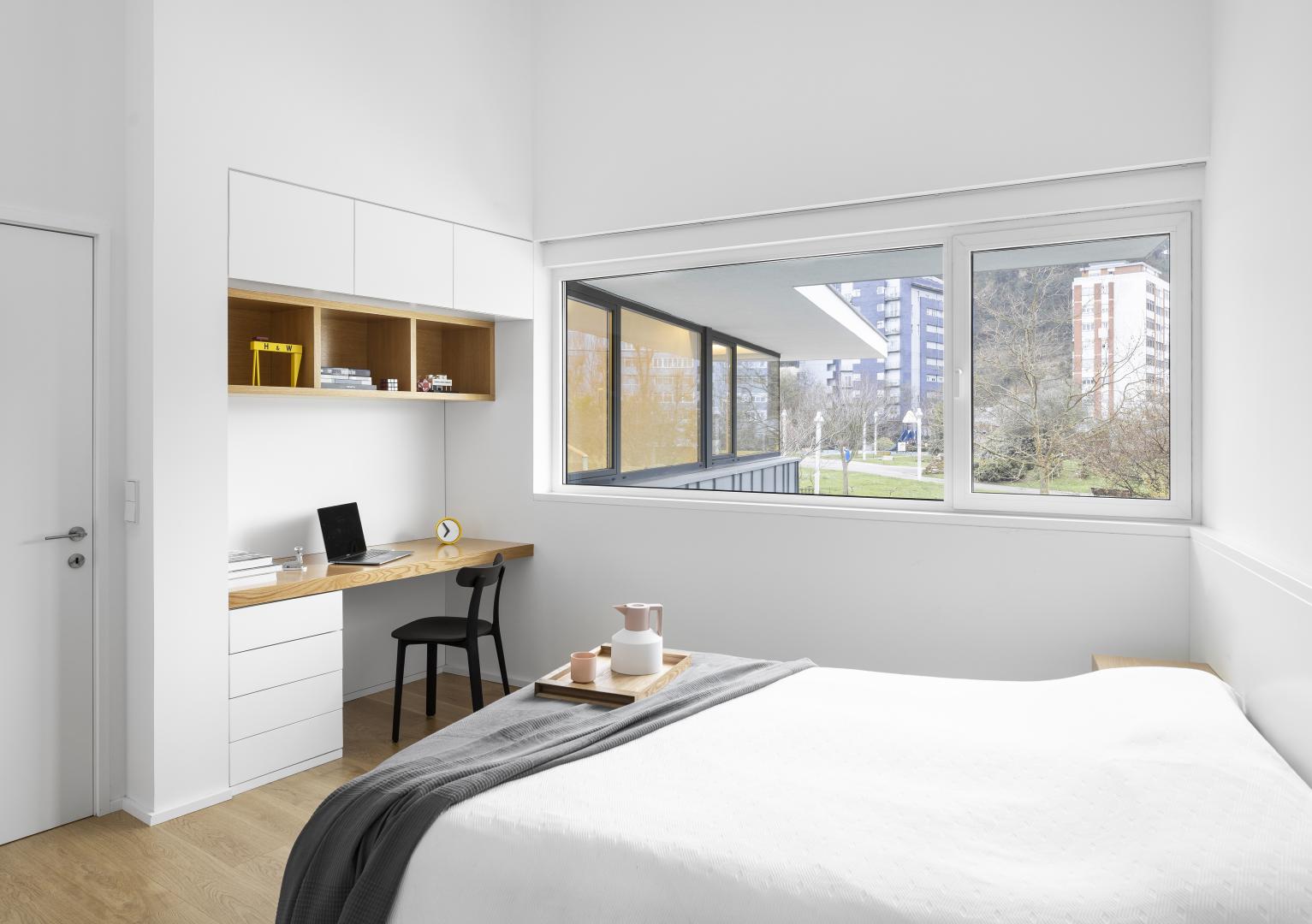

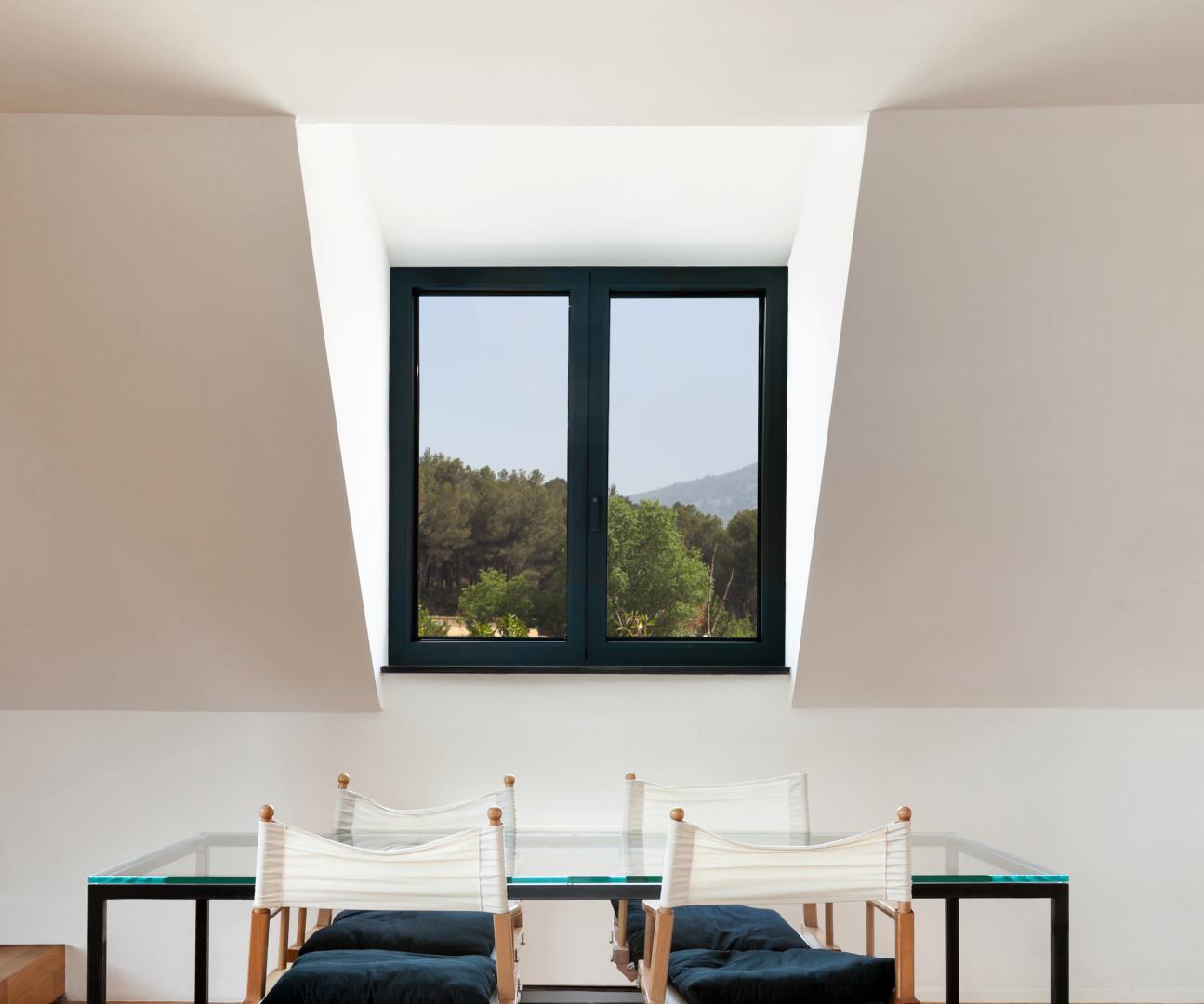

Cortizo COR 80 Hidden Sash Thermal Break system is a highly aesthetic window.

Such a solution maximises the glazed surface and let's much more sunlight in. This window model is characterised by the great thermal and acoustic performance prompted by the 45 mm thermal break. A glazing capacity of up to 51 mm allows the installation of triple glazing.

A new concept of Euro-Groove hinged system capable of reaching the maximum levels of weather tightness, energy saving and acoustic protection with reduced assembly and fabrication time.

With 80mm of frame depth, it responds to the most severe climatic demands, and provides an unbeatable degree of energy efficiency thanks to its minimal window transmission value (Uw)  that can reach 0.8 W/m²K. These minimum values are achieved thanks to the perfect design of the thermal break zone with 45mm tubular polyamide strips as well as the incorporation of cross-linked polyolefin both in the glazing space as well as the interior of the frame and sash.

Its great glazing capacity of up to 65mm allows for the use of energy efficient glazing and compositions of large thickness as well as double chambers that give excellent thermal and acoustic performance (up to 46 dB of noise protection) that translates in to maximum energy saving and total interior comfort.

The performance achieved in the AEV test, has shown this window to have the best water tightness performance, air permeability and wind resistance in order to guarantee the greatest protection against the most adverse atmospheric agents.

The simplicity in its assembly and less labour time, allows for a more industrialized fabrication resulting in a final saving of time and cost.



Want to add Cortizo COR 80 Industrial Thermal Break Windows to your product range or building?

Cortizo COR 80 Hidden Sash Thermal Break
Cortizo COR 80 Hidden Sash Thermal Break

Features & Benefits

  • Designed with precision and strength, built to last, even in the toughest climates. In addition, the adaptable design capabilities mean that your windows will be precisely and custom manufactured to suit your building project.
  • The COR 80 Industrial TB Window can safely hold a larger glass surface because of the strength of the frame design.
  • Powder-coated aluminium, like that developed and tested by Cortizo, is fantastically durable, meaning that your windows will look brand-new for an extended period. In addition, the aluminium window is able to present a slimmer appearance.
  • Minimum glazing capability of 25mm and a maximum of 65mm. Despite typical glazing often being around 4mm.
  • Multiple opening capabilities. You can opt for inward opening, outward opening, side or top hung windows, tilt and turn, tilt and parallel, or tilt only.
  • Exceptionally large windows, the Cortizo COR 80 Industrial Window has a maximum sash weight is 160kg, with a height and width of 2.600mm and 1.500mm. Furthermore, you can opt for your windows to sash straight or curved, working in numerous spaces.
  • Remarkable slim sightline, perfectly suited to modern architecture or to add a modern touch to your more traditional property. The frame sightline is 80mm, and the sash is 88mm.



Why Altegra?

We are a Cortizo approved installer, so you can have total peace of mind that our Cortizo COR 80 Industrial Windows will come with the Cortizo stamp of approval, which which means that we guarantee the maximum quality in the installation process and the assembly of the different types systems of Cortizo UK building systems.



  • Technical Specifications

  • Product Details

  • Finishes

  • Openings

Average U values

Transmittance Uw from From 0,8 (W/m²K)

Sizes

Maximum dimensions/sash  length 1600 mm
Maximum dimensions/sash  height 2600 mm



Frame Sections

Frame 80mm

Sash 88mm

Profile thickness door

1.5 mm Window
1.7mm Door

Polyamide strip length  45mm
Maximum weight per sash  120kg
Maximum Glazing  30mm



Performance

Maximum acoustic insulation Rw=46 dBA
Air permeability (EN 12207:2000): CLASS 4
Water tightness (EN 12208:2000): CLASS E1950
Wind resistance (EN 12210: 2000): CLASS C5
Reference test: 1,23 x 1.48m, 2 sashes





  • Sashes of up to 320 kg weight allow maximum dimensions of 1,600mm (length), 2,600mm (height)
  • Sections, Frame 80mm and Sash 88mm
  • Profile thickness window 1,5mm, Door 1,7mm
  • Polyamide Strip length 45mm
  • Possibility of incorporating hardware with concealed hinges.
  • Possibility of incorporating security hardware Evo Security.
  • Possibility of dual colour
  • Colour powder coating (RAL, mottled and rough)
  • Wood effect powder coating
  • Anti-bacterial powder coating
  • Anodized

One of the fantastic features of COR 80 Industrial TB Windows is its multiple opening capabilities. You can opt for inward opening, outward opening, side or top hung windows, tilt and turn, tilt and parallel, or tilt only.

Open in: practicable, turn-tilt, parallel tilt, hinged.

Open out: practicable, projecting-sliding.





Standard Colour Range

TRAFFIC WHITE - RAL 9016: Offering a more traditional look to match existing window frames.

Anthracite Grey - RAL 7016: The classic aluminium bifold door colour for that ‘Grand Designs’ look.

Jet Black - RAL9015: Perfect for a more sophisticated, contrasting colour option or a more contemporary finish.

Dual Colour Range

White / Anthracite

Anthracite / White
