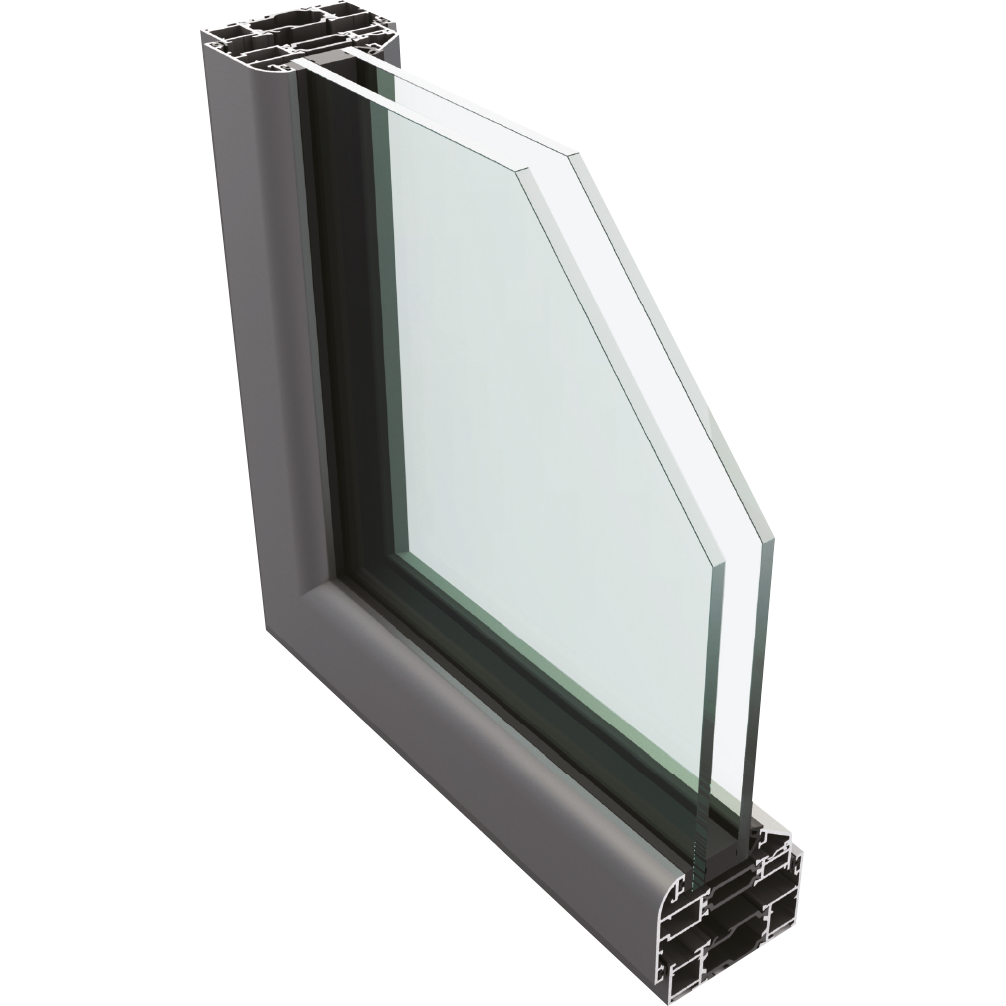

ALI VU Profile
The ALI VU series offers a range of high quality glazing solutions for side and top hung open out windows suitable for both the residential and commercial markets.
Ali VU is a super slimline aluminium window with a polyamide thermal break giving impressive thermal efficiency. Available with a host of design options, Ali VU’s strong super slim frame has a depth of just 38mm (fixed light) or 66mm with standard vent and is available in sizes up to a maximum of 1400mm x 1400mm, to give the widest views and maximise daylight in every room.
Ali VU is ideal for both domestic and large scale residential projects and is perfectly complemented by our Ali FOLD door range. The stepped face option also means that Ali VU is perfect as a modern, energy efficient replacement for heritage style steel windows in both commercial and residential buildings.
ALI VU Profile
-
Technical Specifications
-
Materials
-
Finishes
-
Construction
Typical* Sizes
| Width (mm) | Height (mm) | |
| Top Hung | 1400 | 1400 |
| Side Hung | 950 | 1400 |
For guidance only - when exceeded please consult our technical department.
Weather Rating
BS 6375 Part 1
| Air Permeability | 600Pa |
| Water Tightness | 600Pa |
| Wind Resistance | 1600Pa |
Glazing
| Radius and stepped vent option | 28mm - 36mm |
| Outerframes and flat-faced option | 28mm - 44mm |
Testing
Tested in accordance to PAS24, BS 6375-1, BS6375-2 and BS6375-3.
Average U-Values
Residential CEN Standard
| 1230 x 1480 | |
| 28mm Double Glazed Unit | 1.5 W/m2K |
| 44mm Triple Glazed Unit | 1.1 W/m2K |
Figures based on flat faced vent option.
Window Energy Rating
| Double Glazed Unit | Capable of achieving A Rating* |
| Triple Glazed Unit | Capable of achieving A+ Rating* |
* section and configuration dependent
- All aluminium sections are extruded using Aluminium Alloy 6060 or 6063 T6 to BS EN 755 part 9 2008 or BS EN 12020-2.
- Polyamide thermal barriers are manufactured in accordance with PA66 GF25.
- Gasket are manufactured in accordance with BS3734.
Ali VU Profile casement window sections are typically available in two finishes...
- Polyester Powder Coating to BS EN 12206-1: 2004 Part 1 - painted in-house. Surface finish at 40 microns standard, or enhanced to 60 microns for marine environments, in accordance with ISO 9001, ISO 14001 and ISO 18001.
- Anodised finishes are to BS3897:1991 to a minimum of 25 microns (AA25), supplied in either satin or polished finish in a limited range of colours.
Ali VU Profile is constructed using mitred corners, joined with crimped cleats; aligned chevrons assist in clean, accurate mitres. Integral transoms and mullions are scribed around the outer frame and fixed with either screwports or shearblocks.
A proprietary sealant is used on all metal joints in-line with good practice. Opening window frames are designed to be inserted directly into the outer frames using friction stays.
Standard Trade Colour Range
White (9910)
Anthracite (7016)
Black (9005)
Dual Colour Range
White (9910) / Anthracite (7016)
Anthracite (7016) / White (9910)
Dual colour available
Our ALI products are available in a wide variety of standard or non-standard colours, including dual colour where you have a choice of the same colour inside and out.
Variety of glass types
Due to the design and nature of our ALI products, we are able to provide an extensive array of customisable glass options for you to choose for your aluminium system.
Made to measure
Every aluminium window system which we design is made to match our customers exact requirements. We have a dedicated in-house team to help with this.
Extensive product range
With our ALI product range, we are able to design standard and bespoke aluminium windows suitable for all types of customers.
Colours
For commercial, choose from a full range of standard RAL colours and if you have a specific colour in mind, we can colour match for a bespoke solution.
Finishes
Anodised and Anolok finishes are to BS3897:1991 to a minimum of 25 microns (AA25), supplied in either satin or polished finish in a limited range of colours.
Coatings
Our Aluminium Systems can be coated with polyester powder paint to BS EN 12206-1 in a gloss, satin or matt finish.
